Product Introduction
AC servo motors for industrial automation achieve precise speed, position, and torque control through closed-loop control. They are suitable for production lines, robotics, and handling equipment.
Product Advantages
High-Precision Control
This AC servo motor utilizes a high-resolution optical encoder, achieving motor rotation angle accuracy up to 0.01°.
Fast Response
The servo motor's control system response time is less than 1ms, enabling rapid output adjustments in response to load changes or command changes.
High Overload Capacity
The servo motor can withstand instantaneous overloads up to three times its rated torque and maintain stable operation during equipment startup and acceleration.
Technical Parameters
|
Category |
Parameter |
Details |
|
Basic Parameters |

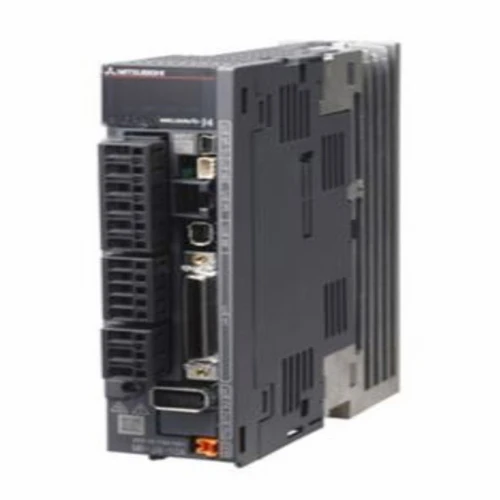

Product Model |
MR-J4-100A |
|
Product Name |
General-purpose AC Servo |
|
|
Brand |
Mitsubishi |
|
|
Technical Specifications |
Rated Output Power |
Rated Output: 55 kW |
|
Power Requirements |
Power Supply: 3-phase AC 400V |
|
|
Interface Type |
Interface: Universal |
|
|
Control Functions |
Supports position control, speed control, and torque control |
|
|
Position Control |
Follows position commands for precise positioning |
|
|
Speed Control |
Follows speed commands to maintain speed within a specified range |
|
|
Torque Control |
Uses switching signals to adjust torque during operation |
|
|
Performance Features |
Motor Type |
High-efficiency IPM motor |
|
Output Power |
5.5 kW |
|
|
Rated Speed |
1500 r/min |
|
|
Voltage Level |
400V |
|
|
IPM Motor Restrictions |
IPM motor MM-EFS series cannot be driven by commercial power supply |
|
|
Wiring Length |
Total wiring length for IPM motor must not exceed 100m |
|
|
Motor Connection |
One inverter cannot connect multiple IPM motors simultaneously |
|
|
Drive Unit |
200VAC/400VAC class |
|
|
Communication Capabilities |
High-speed Serial Communication |
Communication cycle up to 0.44 ms |
|
SSCNETⅢ Interface |
Supports SSCNETⅢ fiber-optic communication |
|
|
Long-distance Wiring |
Up to 800m (maximum 50m between stations × 16 axes) |
|
|
Installation & Compatibility |
MR-J3-B Compatibility |
Compatible with MR-J3-B; same installation, wiring, and connectors |
|
Full-closed Loop Control |
Provides MR-J3-B-RJ006 servo amplifier for full-closed loop control |
|
|
High-speed Communication |
Achieves 0.44 ms communication cycle between motion controller and servo amplifier via SSCNETⅢ |
|
|
Additional Information |
Cable Length |
30m (compatible with HC-KFS; HC-MFS; HC-UFS servo motors) |
|
Encoder Type |
Encoder for HC-KFS; HC-MFS; HC-UFS servo motors |
FAQ
Q: What is the standard warranty period for the motor?
A: We offer a 12-month warranty.
Q: Do you offer OEM/ODM customization?
A: Yes, we can customize the housing color, connectors, and mounting method to meet your needs.
Q: What is the ordering process?
A: Submit your request → Confirm specifications → Sign a contract → Pay a deposit → Production → Shipment.
Q: What payment methods are supported?
A: We accept international payment methods such as wire transfer (T/T), letter of credit (L/C), and PayPal.
Q: Can I pay in installments?
A: Installment plans are available based on the order amount and terms of cooperation.
Q: What certifications does this servo motor have?
A: It is RoHS and UL certified, meeting environmental and safety standards.
