In the realm of electrical engineering, AC - DC power modules are fundamental components that bridge the gap between the alternating current (AC) power from the grid and the direct current (DC) power required by most electronic devices. As a leading AC - DC power module supplier, I am often asked about the efficiency of an average AC - DC power module. This blog post aims to delve into this topic, providing a comprehensive understanding of power module efficiency, its influencing factors, and its significance in various applications.
Understanding AC - DC Power Module Efficiency
Efficiency, in the context of an AC - DC power module, is defined as the ratio of the output power to the input power, expressed as a percentage. Mathematically, it can be represented as:
[ \text{Efficiency} (\eta)=\frac{P_{out}}{P_{in}}\times100% ]
where (P_{out}) is the power delivered to the load (in watts), and (P_{in}) is the power drawn from the AC source. For example, if an AC - DC power module has an input power of 100 W and an output power of 90 W, its efficiency is (\frac{90}{100}\times100% = 90%). The remaining 10 W is dissipated as heat, which is an inevitable consequence of the conversion process.
Factors Affecting the Efficiency of AC - DC Power Modules
1. Circuit Topology
The choice of circuit topology significantly impacts the efficiency of an AC - DC power module. Different topologies have different levels of complexity and power losses. For instance, the flyback topology is commonly used in low - power applications due to its simplicity and cost - effectiveness. However, it generally has lower efficiency compared to more advanced topologies like the forward converter or the half - bridge converter, which are better suited for higher - power applications. The forward converter, for example, can achieve higher efficiency by reducing the energy stored in the transformer and minimizing the switching losses.
2. Component Quality
The quality of the components used in the power module also plays a crucial role in determining its efficiency. High - quality components, such as low - resistance inductors and high - performance diodes, can reduce power losses and improve overall efficiency. For example, using a low - resistance inductor can minimize the resistive losses (also known as (I^{2}R) losses) that occur when current flows through the inductor. Similarly, fast - switching diodes can reduce the switching losses associated with the rectification process.
3. Load Conditions
The efficiency of an AC - DC power module is not constant but varies with the load. Most power modules are designed to achieve maximum efficiency at a certain load level, typically around 50% - 70% of the rated load. At very light loads, the power losses due to the standby circuitry and the core losses in the transformer become relatively more significant, resulting in lower efficiency. On the other hand, at full load, the resistive losses and the switching losses increase, which can also lead to a decrease in efficiency.
4. Operating Temperature
Temperature has a significant impact on the efficiency of an AC - DC power module. As the temperature rises, the resistance of the components increases, leading to higher power losses. Additionally, the performance of semiconductor devices, such as transistors and diodes, degrades at high temperatures, further reducing efficiency. To mitigate these effects, power modules are often equipped with thermal management systems, such as heat sinks and fans, to maintain a stable operating temperature.
Efficiency of Different Types of AC - DC Power Modules

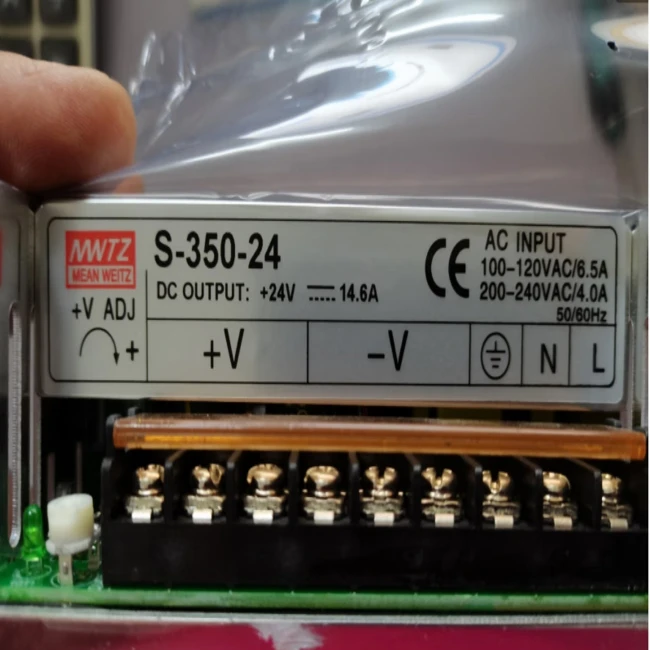

Industrial Grade AC - DC Switching Power Supply
Industrial applications often require high - reliability and high - efficiency power supplies. Industrial Grade AC - DC Switching Power Supply are designed to meet these requirements. These power supplies typically use advanced circuit topologies and high - quality components to achieve high efficiency, often exceeding 90%. They are also designed to operate in harsh environments, with features such as wide input voltage ranges, high - temperature tolerance, and protection against over - voltage, over - current, and short - circuits.
Waterproof AC - DC Power Supply
Waterproof AC - DC power supplies are used in outdoor and wet environments, where they need to be protected against moisture and dust. Waterproof AC - DC Power Supply are designed with special enclosures and sealing techniques to ensure their reliability. While the waterproofing features may add some additional losses, modern waterproof power supplies can still achieve relatively high efficiency, typically in the range of 85% - 90%.
High Power AC - DC Power Supply
High - power applications, such as data centers and industrial equipment, require power supplies that can deliver large amounts of power efficiently. High Power AC - DC Power Supply are designed to meet these demands. These power supplies often use parallel or series configurations of multiple power modules to increase the output power. By using advanced control techniques and high - efficiency components, high - power AC - DC power supplies can achieve efficiency levels of up to 95% or even higher.
Significance of Efficiency in AC - DC Power Modules
1. Energy Savings
In today's energy - conscious world, energy efficiency is a top priority. Using high - efficiency AC - DC power modules can significantly reduce energy consumption, leading to cost savings for both consumers and businesses. For example, in a large data center, even a small increase in the efficiency of the power supplies can result in substantial energy savings over time.
2. Heat Dissipation
Lower power losses in high - efficiency power modules mean less heat is generated. This reduces the need for large and expensive cooling systems, which can further save energy and reduce the overall cost of ownership. Additionally, less heat generation can improve the reliability and lifespan of the power module and other components in the system.
3. Environmental Impact
By reducing energy consumption, high - efficiency AC - DC power modules also have a positive environmental impact. They help to reduce greenhouse gas emissions associated with electricity generation, contributing to a more sustainable future.
Conclusion
The efficiency of an average AC - DC power module depends on various factors, including circuit topology, component quality, load conditions, and operating temperature. Different types of AC - DC power modules, such as industrial grade, waterproof, and high - power supplies, have different efficiency characteristics to meet the specific requirements of various applications. As a leading AC - DC power module supplier, we are committed to providing high - efficiency power solutions that offer energy savings, reduced heat dissipation, and a lower environmental impact.
If you are interested in learning more about our AC - DC power modules or have specific requirements for your application, we invite you to contact us for a detailed discussion and a customized solution. Our team of experts is ready to assist you in finding the most suitable power module for your needs.
References
- Mohan, N., Undeland, T. M., & Robbins, W. P. (2012). Power Electronics: Converters, Applications, and Design. Wiley.
- Erickson, R. W., & Maksimović, D. (2001). Fundamentals of Power Electronics. Springer.
